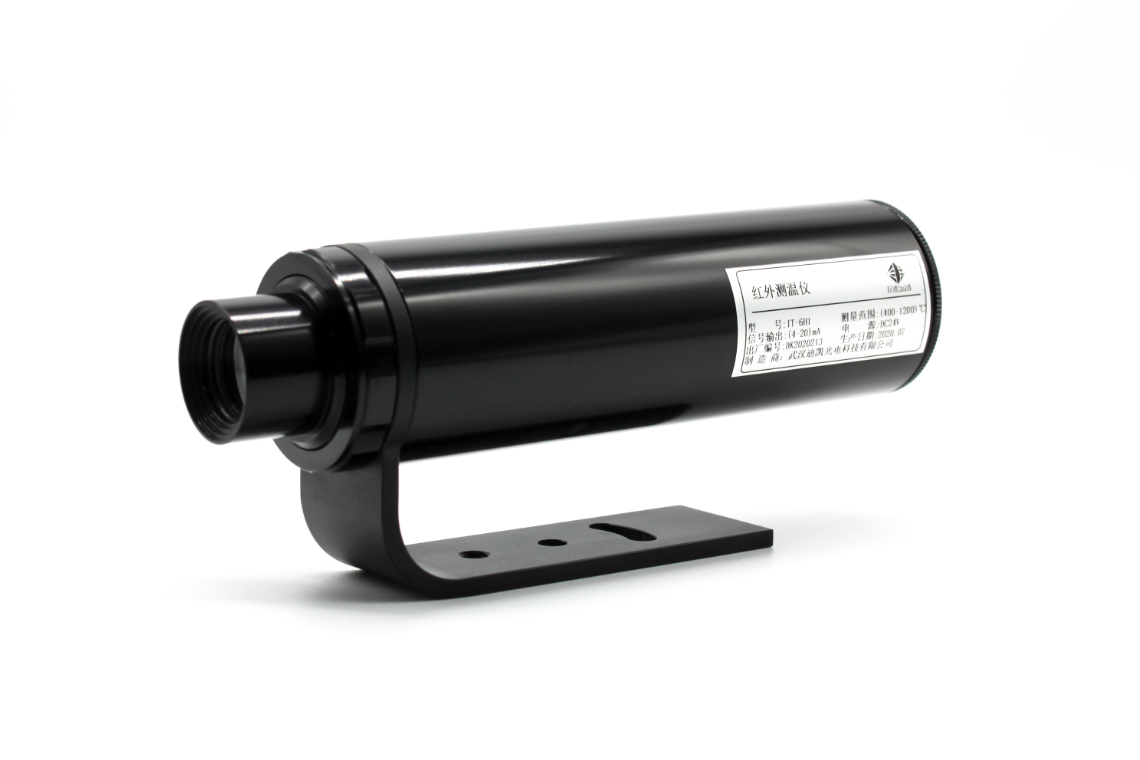

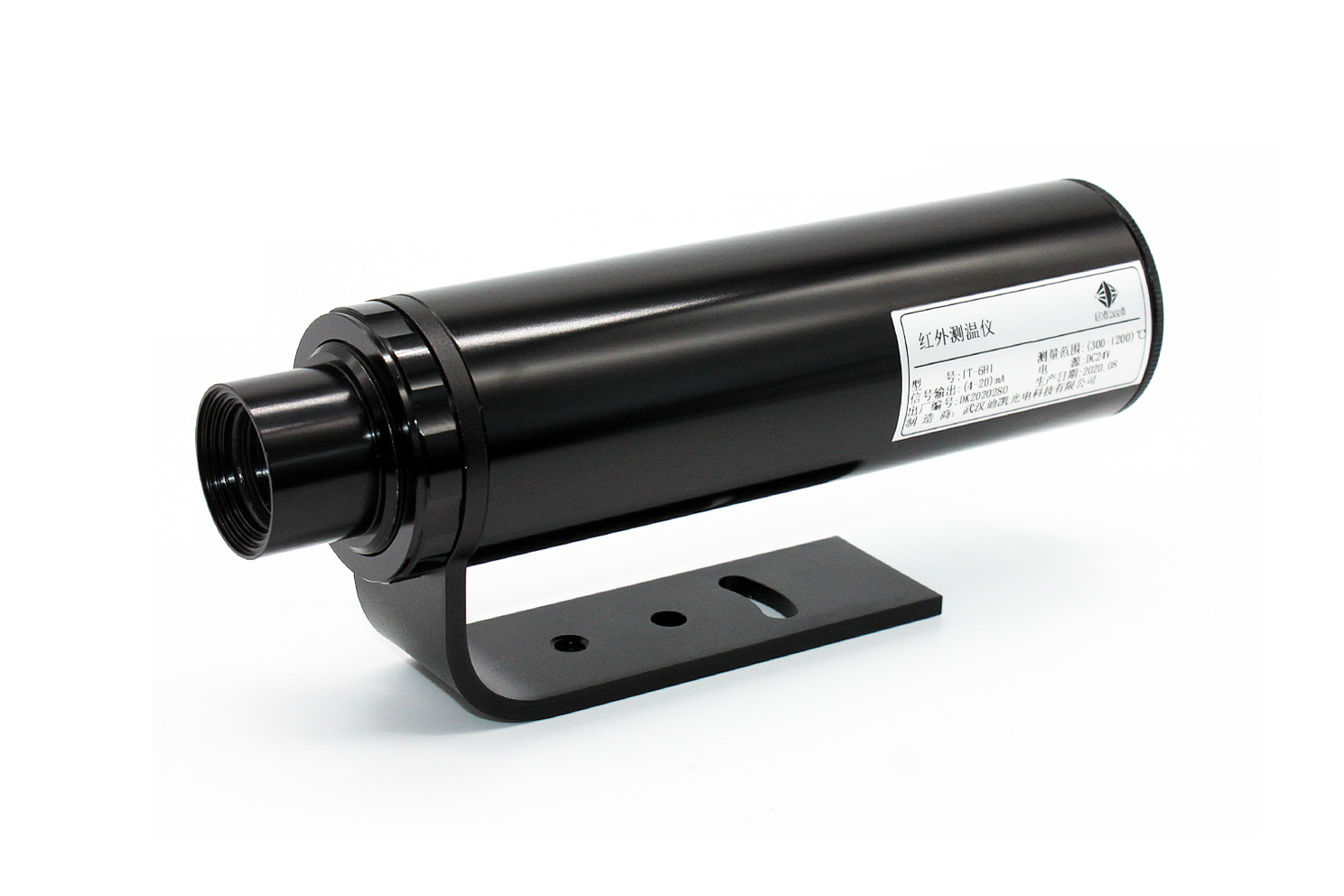

IT-3H1 Industrial Infrared Pyrometer

IT-3H1 with temperature range 300-1200℃, is an economical infrared pyrometer for industrial use, provides a single sensor solution for forging, heat treatment, smelting, hot rolling, hot pressing sintering etc..
Retail price
0.0
元
Market price
0.0
元
Number of views:
999
Product serial number
Product list
Send an inquiry

Related attachments

Quantity
-
+
Stock:
0
1
Product description
User guide
      IT-3H1 with temperature range 300-1200℃, is an economical infrared pyrometer for industrial use, provides a single sensor solution for forging, heat treatment, smelting, hot rolling, hot pressing sintering etc..
      IT-3H1 infrared pyrometer features coaxial laser sighting. Its distance-to-spot ratio is 200:1 and the smallest spot size is 2mm. Laser sighting and high-resolution provide solutions for either small targets or long-distance measurements. Standard features include adjustable emissivity 0.10 to 1.00, which is suitable for ferrous metals with bad surface finish and some non-metallic materials.
      IT-3H1 infrared pyrometer also has RS485 communications, through which the pyrometer can be connected to a computer in the control room. This enables users to view, configure, focus the thermometer locally or remotely.

Applications: forging, heat treating, smelting, glass melting, wire mills, induction heating and so on.

　　Technical Data
　　Model & Temperature range
　　IT-3H1: 300-1200℃

　　Distance-to-Spot Ratio (D:S)
　　200:1

　　Spectral range
　　1-1.7µm
　　
　　Measurement parameters
　　Accuracy: ±0.5%(FS)
　　Repeatability: 0.5%
　　Response time(95%): ≤5ms
　　Temperature resolution(analog): 0.5℃
　　Temperature resolution(digital): 0.1℃

　　Electrical Parameters
　　Output: 0-20mA or 4-20mA / 0-5V
　　Power: 24VDC,100mA

　　General Parameters
　　Ambient temperature range: 0-70℃
　　With air cooling: 120℃
　　With water cooling: 175℃
　　Storage temperature range: -20-70℃
　　Vibration: GB/T2423.8-1995
　　Dimensions: L:max170mm; Φ45mm
　　Housing: Aluminum alloy

We could not find any corresponding parameters, please add them to the properties table
Previous
IT-5 Infrared Pyrometer
Next
IT-3H2 Non-Contact Pyrometer

Other products

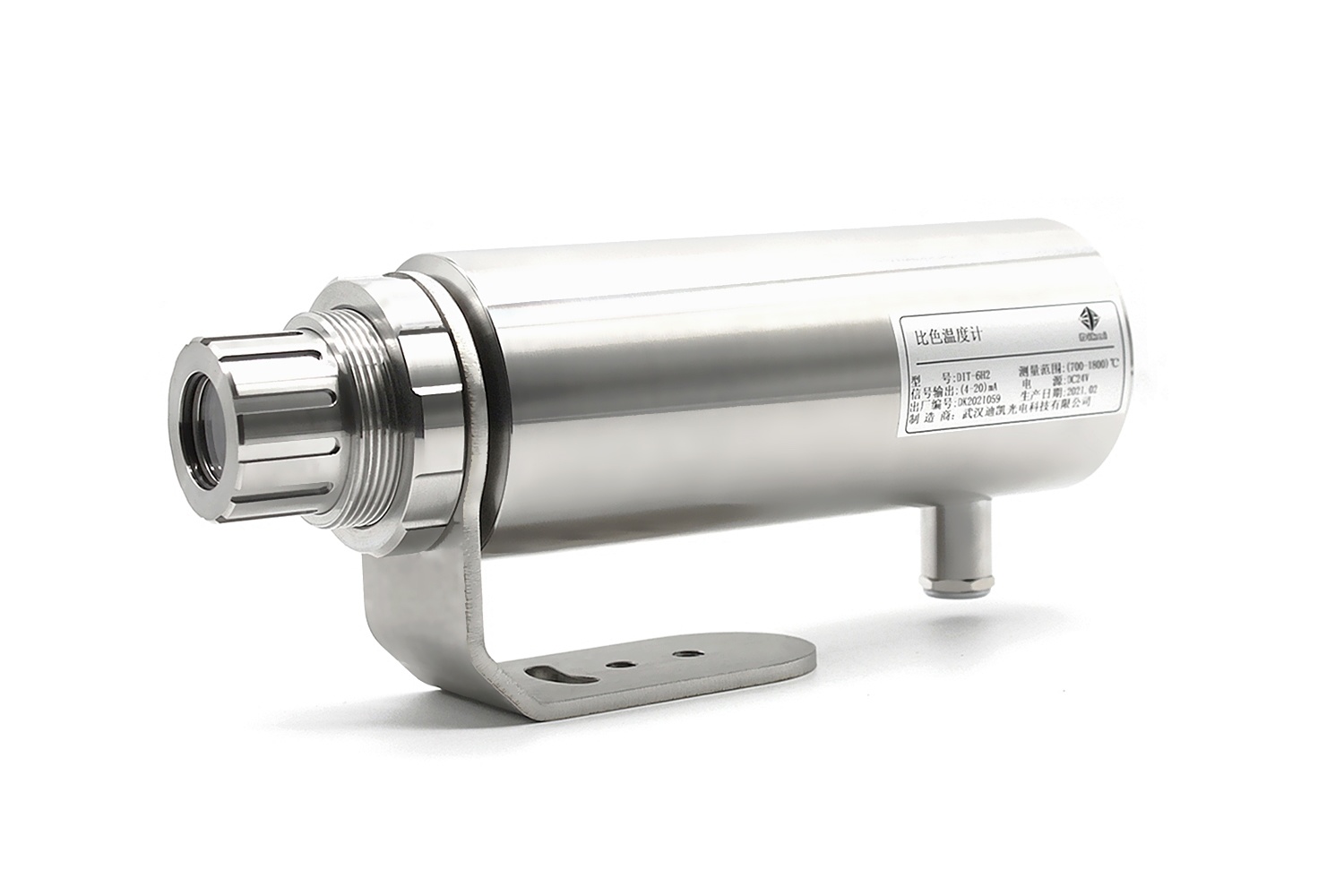

DIT Two-color Infrared Pyrometer
DIT Two-color Infrared Pyrometer
The DIT Series two color pyrometer is 2 color Pyrometer, can measure target temperature through polluting windows, dust, water or smoke, or when the emissivity of material is unknown. This specific owes to the use of 2 detectors, which measure simultaneously at different spectral ranges and determine the result temperature by forming the radiation ratio.
DIT-6H3 Dual Wavelength Pyrometer
DIT-6H3 Dual Wavelength Pyrometer
DIT-6H3 dual wavelength pyrometer, temperature range 1000-3000℃, can measure target temperature through polluting windows, dust, water or smoke, or when the emissivity of material is unknown. This specific owes to the use of 2 detectors, which measure simultaneously at different spectral ranges and determine the result temperature by forming the radiation ratio.

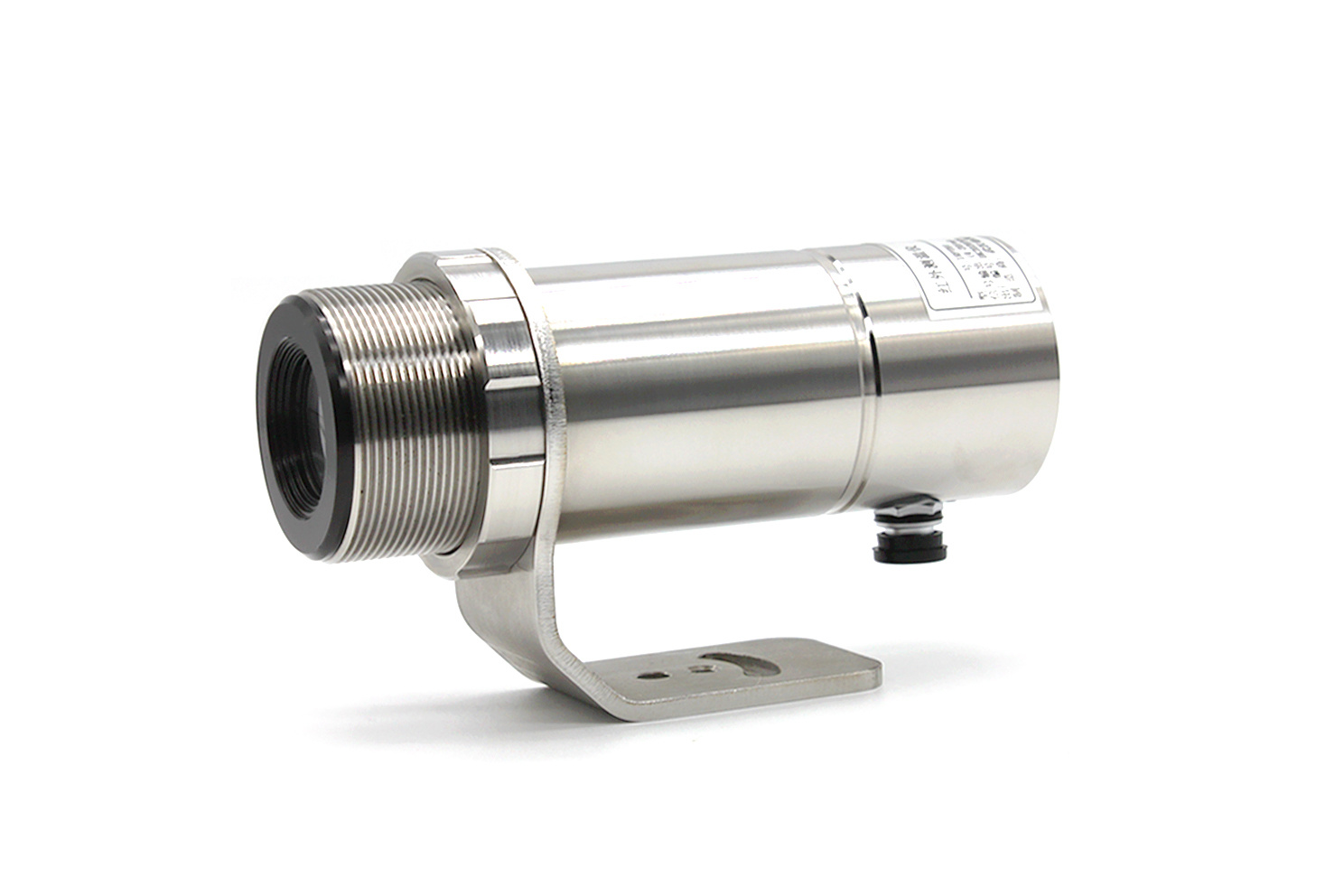

IRPT Wide Range High-accuracy Infrared Pyrometer
IRPT Wide Range High-accuracy Infrared Pyrometer
Temperature Range : 50℃ to 3000°C Accuracy:±0.5%(FS) Response time: ≤1.5ms Widely used for Aluminum and other bright metals、MOCVD, Thin film PE and PP、glass surface temperature、Quartz materials such as optical fiber preforms、Metal,ceramic,graphite、 molten glass、glass surface temperature ,etc.

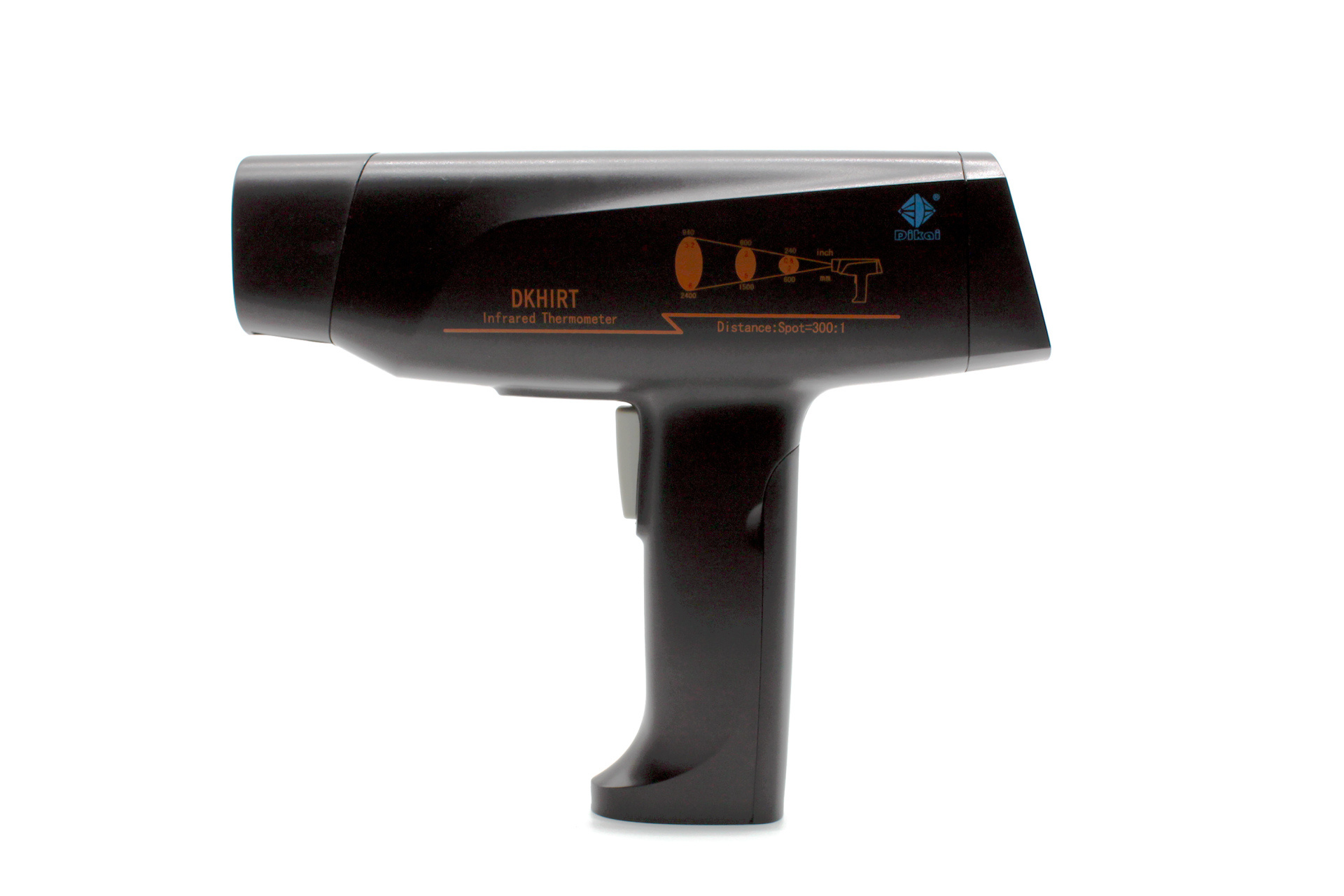

DKHIRTL1 Infrared Digital Pyrometer
DKHIRTL1 Infrared Digital Pyrometer
DKHIRTL1 Infrared Digital Pyrometer is designed to meet high-demanding temperature measuring requirements in many industries, such as hot working in primary and secondary metal processings, safety inspection, petrochemical and power plant operations.
IRPT Infrared Pyrometer
IRPT Infrared Pyrometer
IRPT Series infrared pyrometer includes five models infrared temperature sensor, can measure temperatures from -40℃ to 1650°C. Each model has a specific wavelength and temperature range, suitable for both low temperature (-40~800°C) and high temperature (500~1650°C) monitoring of heating processings.

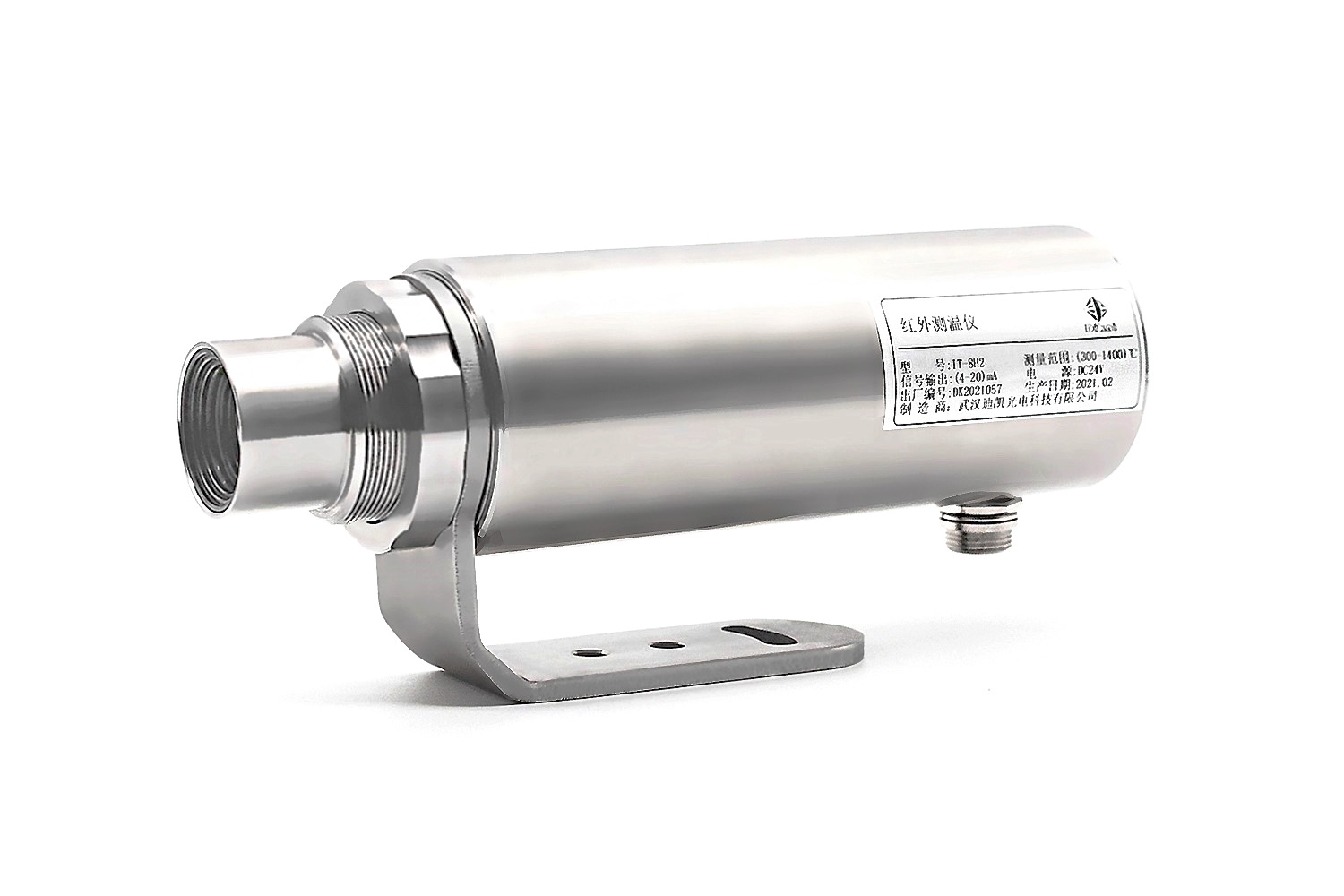

IT-8 Infrared Pyrometer
IT-8 Infrared Pyrometer
IT-8 Infrared Pyrometer is an advanced and integrated online pyrometer, providing a single sensor solution for aluminium extrusion, quenching and strip applications. The series with 4 models can measure target temperatures ranging from 200℃-3000℃.

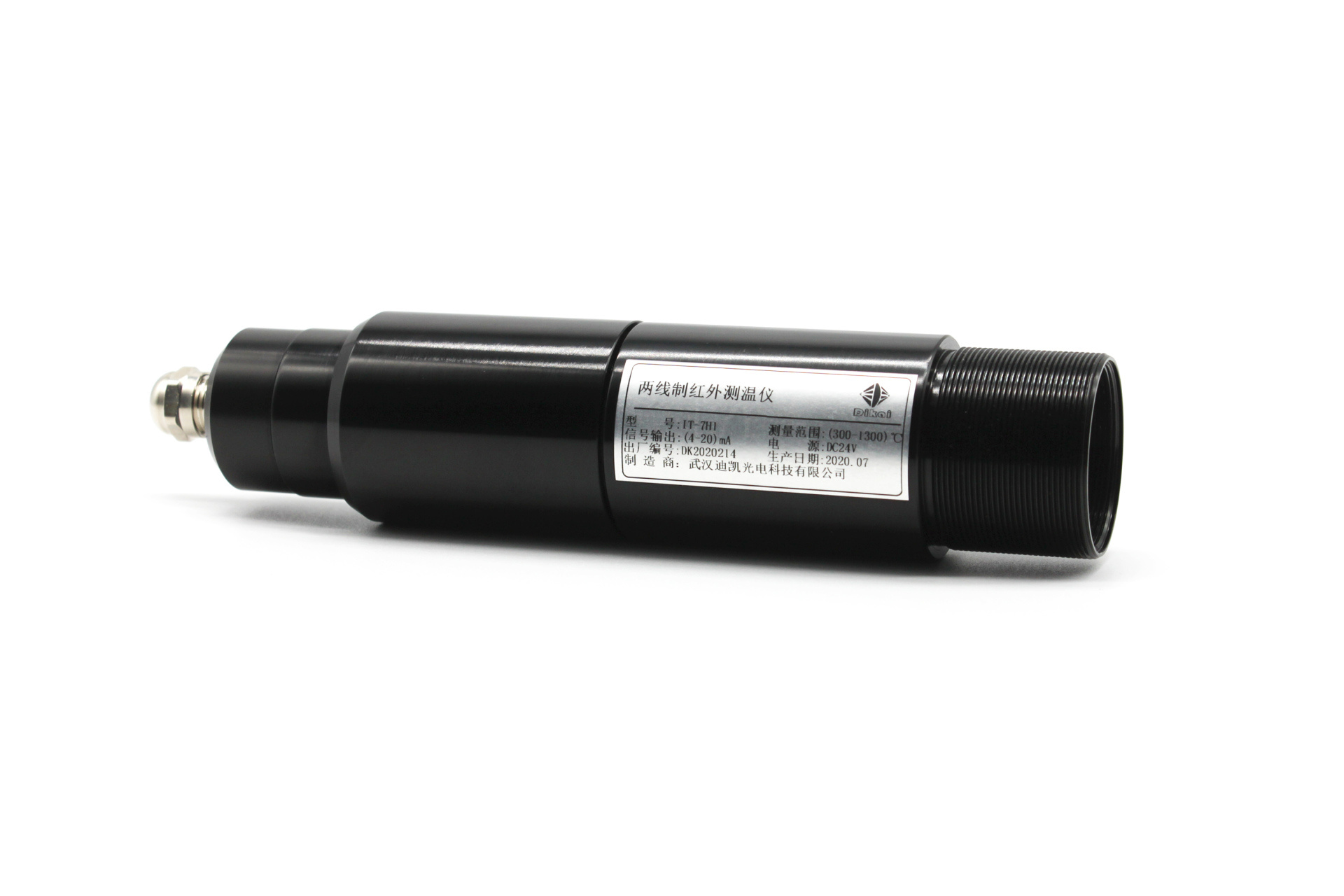

IT-7 Two-Wire Pyrometer
